FURAX: a modular JAX toolbox for solving inverse problems in science

Pierre Chanial, Artem Basyrov, Simon Biquard, Wassim Kabalan,

Wuhyun Sohn and the SciPol Team

FURAX Library

• Motivations and Goals: Why and for what FURAX ?


• FURAX Bulding Blocks: Presentation of the FURAX PyTrees and Operators.


• Optimizations: High-level algebraic reductions with FURAX.


• CMB Applications: From map-making to component separation (see other talks).

Motivations and Goals

• Inverse problems
• Maintain the mathematical formulation of the problem
• Open source: https://github.com/CMBSciPol/furax

• Modularity, extensibility, simplicity: Easy to experiment new ideas, Fail fast approach
• JAX: Differentiation, Just In Time (JIT) compilation, run the same code anywhere — on CPUs and GPUs, laptops and super-computers
• Framework for robust B-mode analysis
• Able to handle SO- and S4-like data sets volumes, Compatibility with TOAST
• Non-ideal optical components
• Multi-GPU parallelization

You can try it: pip install furax or read the documentation https://furax.readthedocs.io.

FURAX Building Blocks

FURAX PyTrees

FURAX relies on PyTrees to represent the data and manipulate the data without overhead For example, for component separation analysis, we can write the generalized sky as a nested PyTree

sky = {
  'cmb': HealpixLandscape(NSIDE, 'IQU').normal(key1),
  'dust': HealpixLandscape(NSIDE, 'IQU').normal(key2),
  'synchrotron': HealpixLandscape(NSIDE, 'IQU').normal(key3),
}

HealpixLandscape(NSIDE, 'IQU') returns an instance of StokesIQUPyTree, which has the attributes i, q and u that store the JAX arrays of the Stokes components.

Also available are StokesIPyTree, StokesQUPyTree and StokesIQUVPyTree.

JAX PyTree are then used by the FURAX Operators:

# Given an acquisition H:
tod = H(sky)

FURAX Operators

The base class AbstractLinearOperator provides a default implementation for the usual linear algebra operations.

Operation	FURAX	Comment
Addition	A + B
Composition	A @ B
Multiplication by scalar	k * A	Returns the composition of a HomothetyOperator and A
Transpose	A.T	Through JAX autodiff, but can be overriden
Inverse	A.I or A.I(solver=..., maxiter=..., preconditioner=...)	By default, the CG solver is used, but it can be overriden
Block Assembly	BlockColumnOperator([A, B]) BlockDiagonalOperator([A, B]) BlockRowOperator([A, B])	Handle any PyTree of Operators: Block*Operator({'a': A, 'b': B})
Flattened dense matrix	A.as_matrix()
Algebraic reduction	A.reduce()

FURAX Operators

Generic Operator	Description
IdentityOperator
HomothetyOperator
DiagonalOperator
BroadcastDiagonalOperator	Non-square operator for broadcasting
TensorOperator	For dense matrix operations
TreeOperator	For generalized matrix operations
SumOperator	Sum along axes
IndexOperator	Can be used for projecting skies onto time-ordered series
MaskOperator	Bit-encoded 0- or 1-valued mask
MoveAxisOperator
ReshapeOperator
RavelOperator
SymmetricBandToeplitzOperator	Methods: direct, FFT, overlap and save
Block*Operator	Block assembly operators (column, diagonal, row)

Applied Operator	Description
QURotationOperator
HWPOperator	Ideal HWP
LinearPolarizerOperator	Ideal linear polarizer
CMBOperator	Parametrized CMB SED
DustOperator	Parametrized dust SED
SynchrotronOperator	Parametrized synchrotron SED
PointingOperator	On-the-fly projection matrix
MapSpaceBeamOperator	Sparse Beam operator
TemplateOperator	For template map-making

FURAX other components (see next talks)

• Several map-makers
• Preconditioners
• TOAST and SOTODLib data interface
• Component operators: CMB, synchrotron, dust and mixing matrix
• Spectral likelihood estimators
• WCS: Healpix & Plate carrée
• Ability to pad observations (JAX constraint) to avoid re-compilations

Multi-level Optimizations

JAX GPU Compilation Chain

From the Python code to the GPU-native code

XLA simplifications

Mathematical identities

• \(a\times 0 = a - a = 0\)
• \(a - 0 = a\times 1 = a / 1 = a^1 = a\)
• \(a^{-1} = 1/a\), \(a^{1/2} = \sqrt{a}\)
• \(-(-x) = x\)
• \((-a)(-b) = ab\)
• \(ac + bc = (a+b)c\)
• \(a / const = a \times (1 / const)\)
• \((a + c1) + (b + c2) = a + b + (c1 + c2)\)
• \((a / b) / (c / d) = ad / bc\)
• \(\ln e^x = x\)
• \(\exp a \exp b = \exp(a+b)\)
• \(a / \exp b = a \exp(-b)\)

Array manipulations

• slicing
• reshaping
• broadcasting
• transposition
• bitcast
• copies

Ol’ Digger’s tricks

• \(a^2 = a \times a\), \(a^3 = a \times a \times a\)
• \(a / b = a\)>>\(\log_2 b\) if b is a power of 2
• \(a \mod b = a \& (b - 1)\) if b is a power of 2

and many more (see xla/hlo/transforms/simplifiers/algebraic_simplifier.cc)

Dead Code Elimination (DCE)

import jax
import jax.numpy as jnp

@jax.jit
def func_dce(x):
    unused = jnp.sin(x)
    y = jnp.exp(x)
    return y[:2]

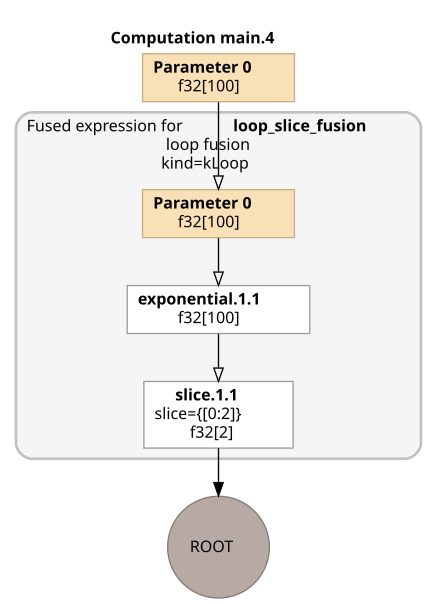

Compiled StableHLO representation

import jax
import jax.numpy as jnp

@jax.jit
def func_full(x):
    return jnp.exp(x)

Full computation vs DCE

XLA Common Subexpression Elimination (CSE)

XLA Common Subexpression Elimination (CSE)

• Definition: CSE identifies and eliminates duplicate computations within a function to optimize performance.

• Benefits:

  • Reduces redundant computation.
  • Enhances runtime efficiency and memory usage.

• Example in Code:
  • Without CSE: jnp.sin(theta) computed twice.
  • After CSE: Shared computation across a and b.

import jax
import jax.numpy as jnp

@jax.jit
def func_cse(theta):
    a = jnp.sin(theta)
    b = jnp.sin(theta) + 1
    return a + b

Compiled StableHLO representation

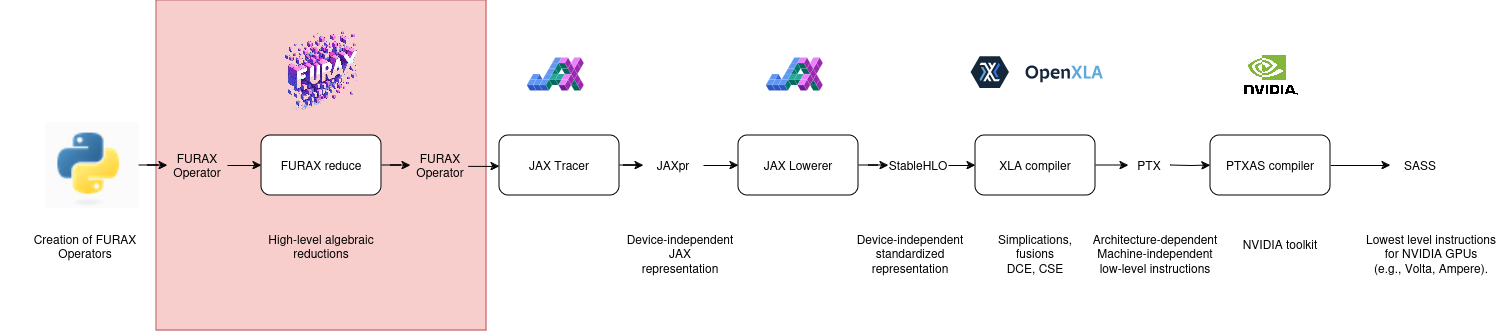

JAX GPU Compilation Chain with FURAX

From the Python code to the GPU-native code

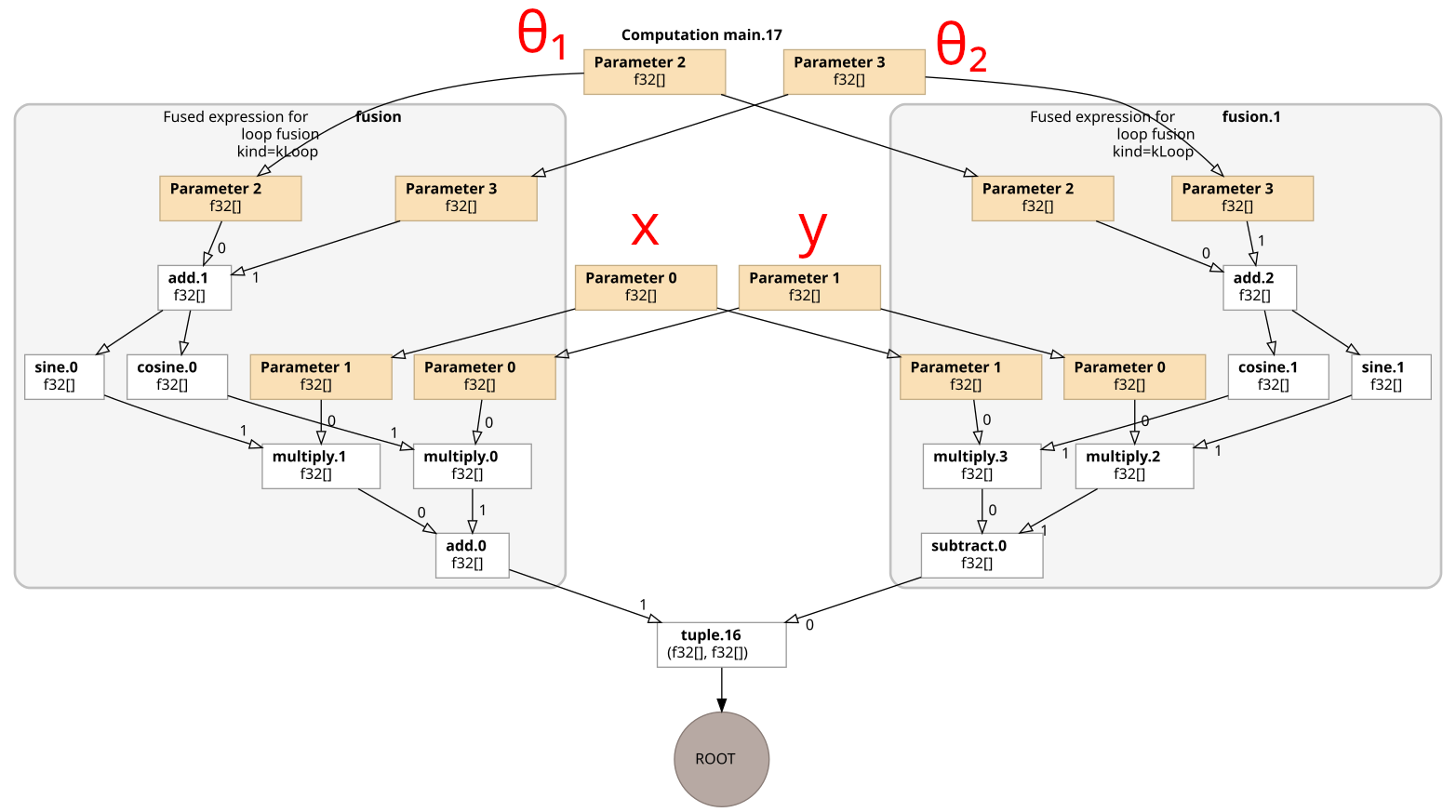

FURAX Algebraic Reductions: Composition of Rotations

import jax
import jax.numpy as jnp

def rot(x, y, theta):
    rotated_x = x * jnp.cos(theta) - y * jnp.sin(theta)
    rotated_y = x * jnp.sin(theta) + y * jnp.cos(theta)
    return rotated_x, rotated_y

@jax.jit
def func(x, y, theta1, theta2):
    return rot(x, y, theta=theta1 + theta2)

Compiled StableHLO representation

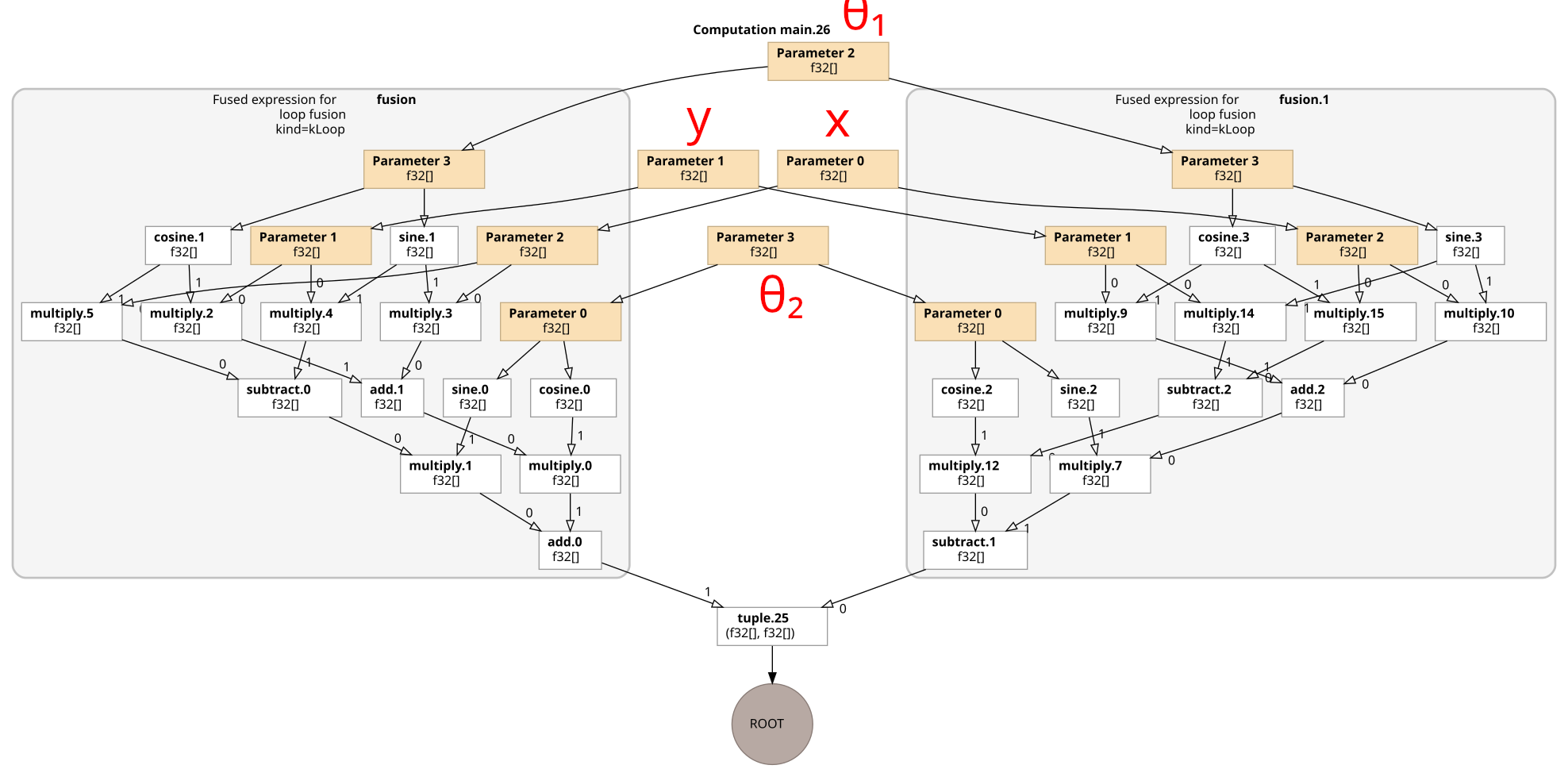

FURAX Algebraic Reductions: Composition of Rotations

import jax
import jax.numpy as jnp

def rot(x, y, theta):
    rotated_x = x * jnp.cos(theta) - y * jnp.sin(theta)
    rotated_y = x * jnp.sin(theta) + y * jnp.cos(theta)
    return rotated_x, rotated_y

@jax.jit
def func(x, y, theta1, theta2):
    x, y = rot(x, y, theta=theta1)
    return rot(x, y, theta=theta2)

Compiled StableHLO representation

FURAX Algebraic Reductions: Instrument Acquisition

Given this modeling of the acquisition, using an ideal linear polarizer and an ideal half wave plate: \[ \mathbf{H} = \mathbf{C}_{\textrm{LP}} \, \mathbf{R}_{2\theta} \, \mathbf{R}_{-2\phi} \, \mathbf{C}_{\textrm{HWP}} \, \mathbf{R}_{2\phi} \, \mathbf{R}_{2\psi} \, \mathbf{P} \] with

• \(\theta\): detector polarization angle
• \(\phi\): HWP rotation angle
• \(\psi\): telescope rotation angle

FURAX reduces this expression to:

\[ \mathbf{H} = \mathbf{C}_{\textrm{LP}} \, \mathbf{R}_{-2\theta + 4\phi + 2\psi}\, \mathbf{P} \]

FURAX Algebraic Reductions: Pointing Matrix

When the time-time noise covariance matrix \(\mathbf{N}\) is diagonal and \(\mathbf{P}\) is a “one-to-one” intensity projection matrix:

\[ \mathbf{P} = \begin{bmatrix} 0 & \cdots & 0 & 1 & 0 & \cdots & 0 \\ 0 & 1 & 0 & \cdots & 0 & 0 & \cdots & 0 \\ \vdots & \vdots & \vdots & \vdots & \vdots & \vdots & \vdots \\ 1 & 0 & \cdots & 0 & 0 & \cdots & 0 \\ \vdots & \vdots & \vdots & \vdots & \vdots & \vdots & \vdots \\ 0 & 0 & \cdots & 0 & 1 & 0 & \cdots & 0 \\ \end{bmatrix}, \]

• the product \(\mathbf{P}^\top \mathbf{N}^{-1} \mathbf{P}\) is diagonal and can therefore be easily inverted (for pixel-pixel covariance matrix or preconditioning).

• Each term is related to the number of noise-weighted times a pixel of the map has been observed.

• For IQU maps, the product is block diagonal, with 3x3 blocks that can also be easily inverted.

• By adding a rule for this operation, we’ve seen an performance improvement by more than a factor of 10 in the forward application (WIP, currently only for \(\mathbf{N}\) scalar).

FURAX Algebraic Reductions: Block Assembly

Operation	Reduction
BlockDiagonalOperator([D1, D2]) @ BlockColumnOperator([C1, C2])	BlockColumnOperator([D1 @ C1, D2 @ C2])
BlockRowOperator([R1, R2]) @ BlockDiagonalOperator([D1, D2])	BlockRowOperator([R1 @ D1, R2 @ D2])
BlockRowOperator([R1, R2]) @ BlockColumnOperator([C1, C2])	R1 @ C1 + R2 @ C2

Practical use case:

Given two observations

\[ \mathbf{P} = \begin{bmatrix} \mathbf{P}_1 \\ \mathbf{P}_2 \end{bmatrix}, \quad \mathbf{N}^{-1} = \begin{bmatrix} \mathbf{N}_1^{-1} & 0 \\ 0 & \mathbf{N}_2^{-1} \end{bmatrix}, \]

The combination is reduced to \[ \mathbf{P}^\top \mathbf{N}^{-1} \mathbf{P} = \mathbf{P}_1^\top \mathbf{N}_1^{-1} \mathbf{P}_1^{\,} + \mathbf{P}_2^\top \mathbf{N}_2^{-1} \mathbf{P}_2^{\,}. \]

Next steps

• Full processing of several observations using padding
• Distribution of the processing on several GPUs
• Because of Furax genericity, it could be applied to other experiments (QUBIC, LiteBIRD, SPT, BICEP, POLARYS, FOSSIL, …?)
